Description:

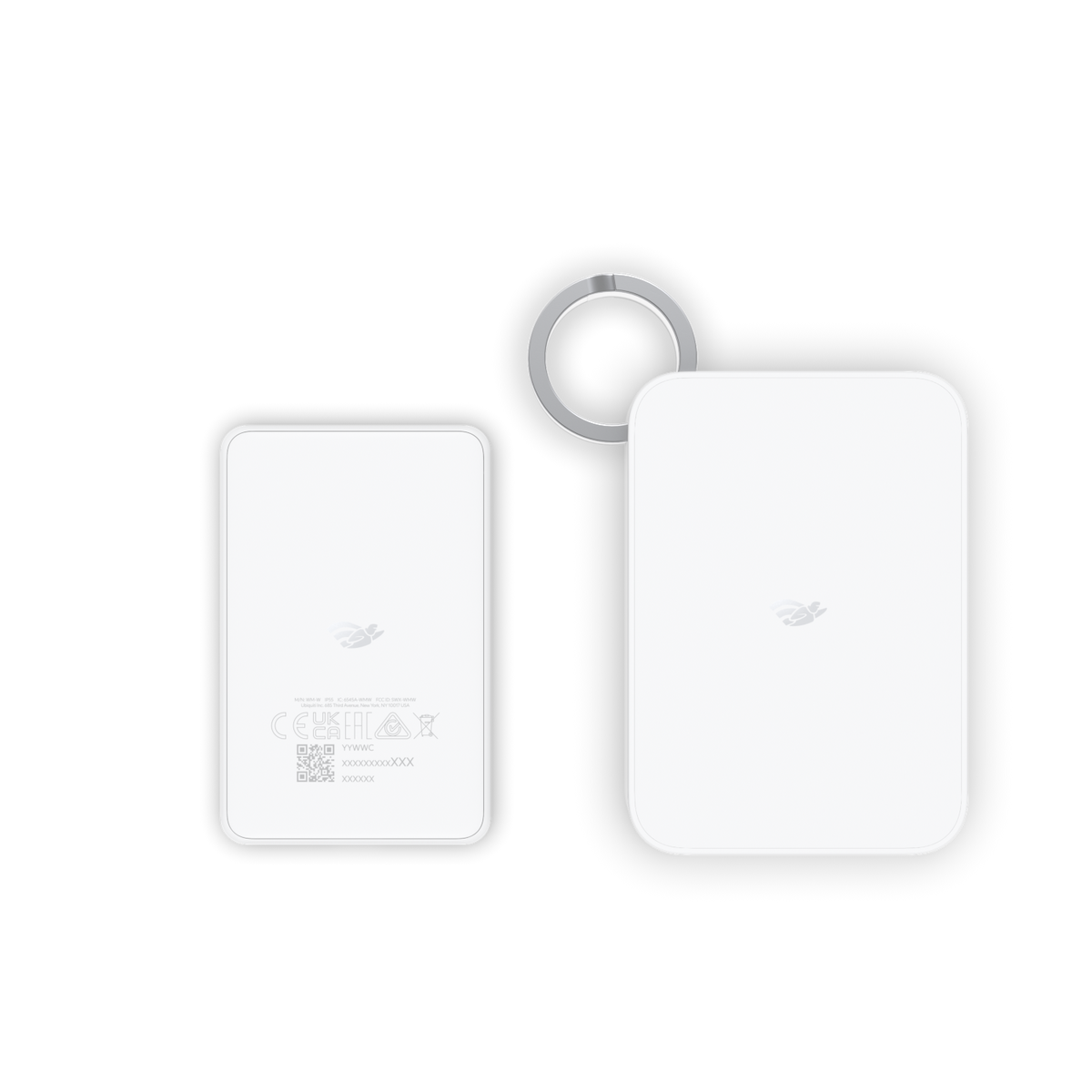

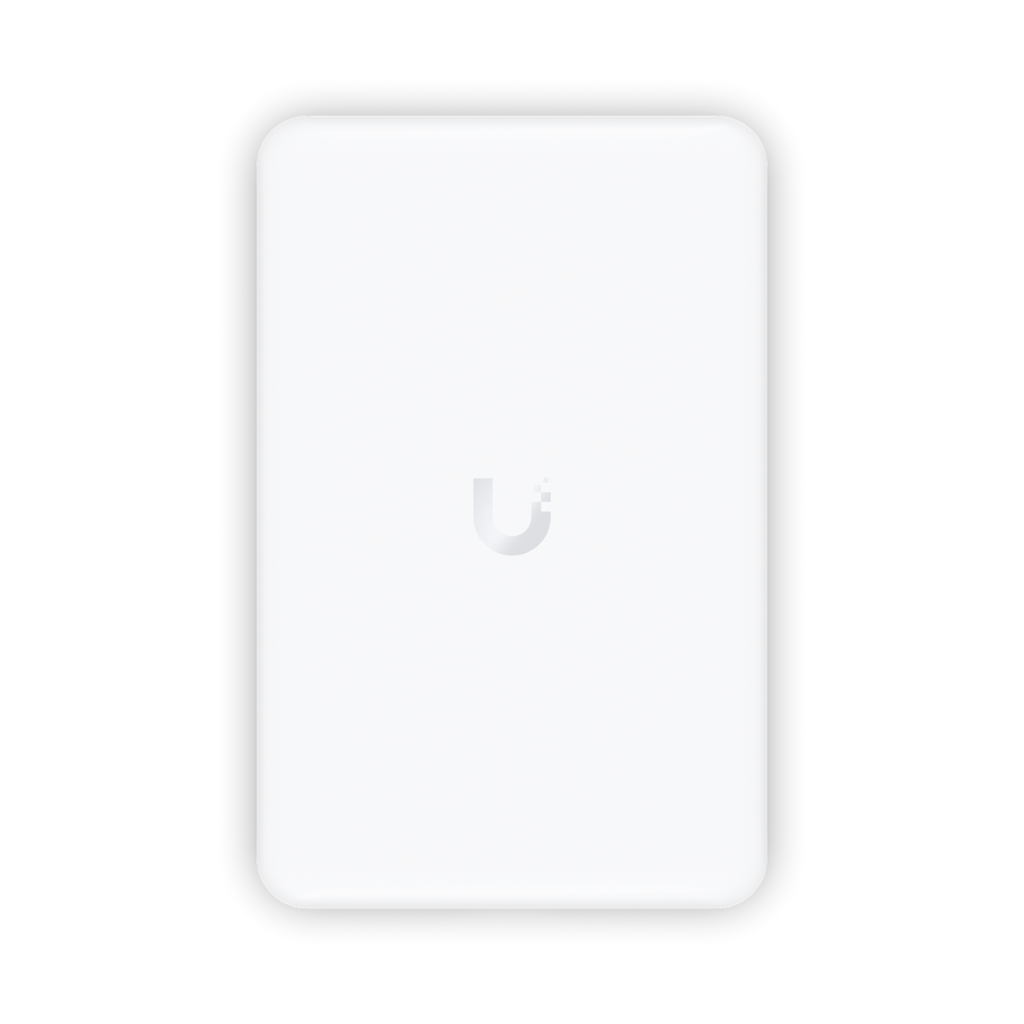

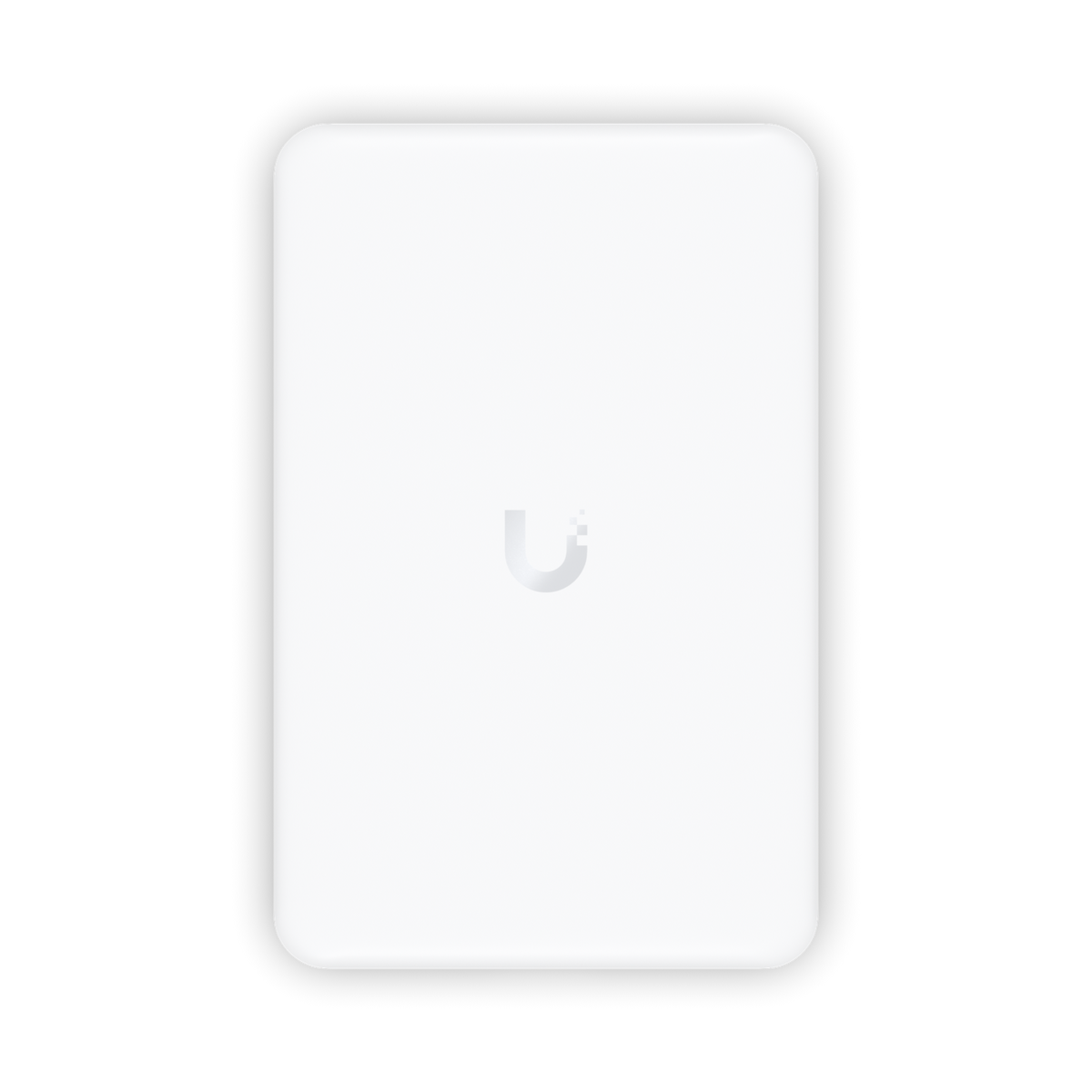

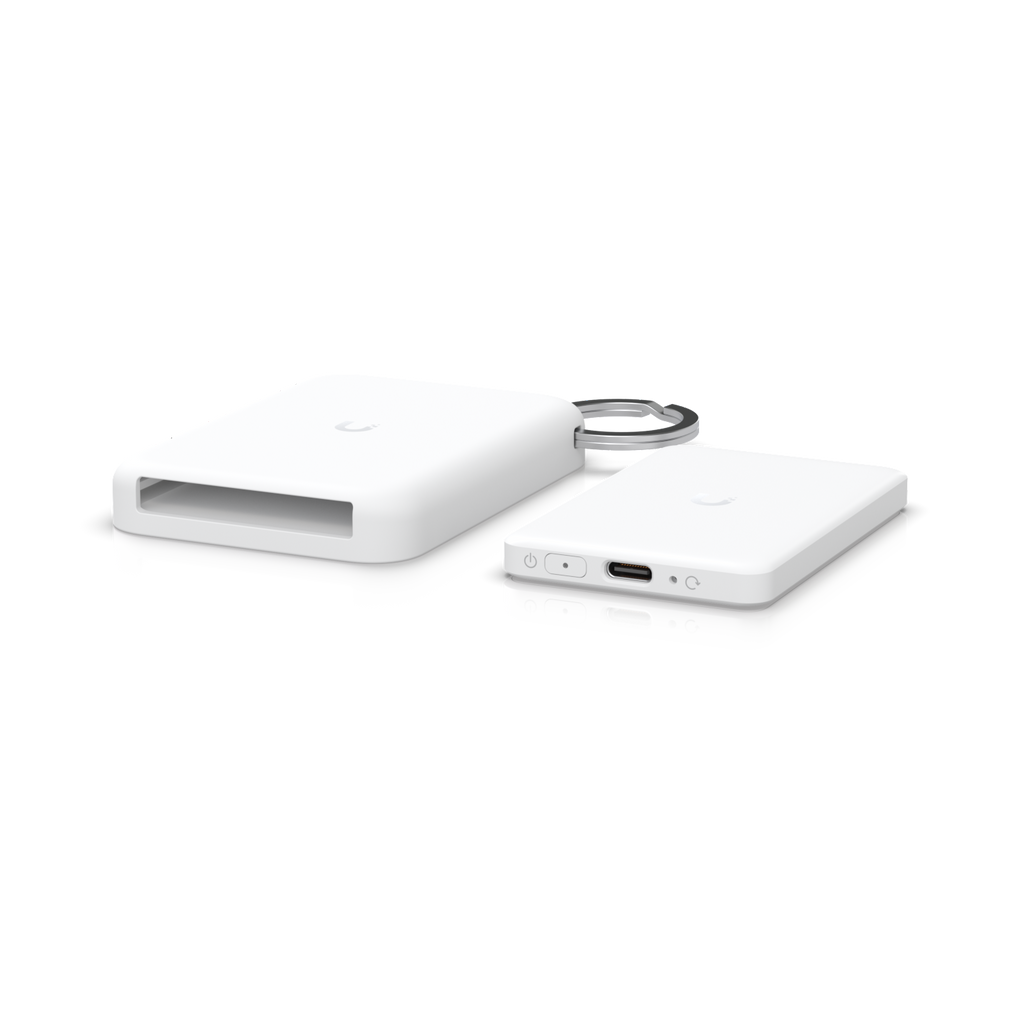

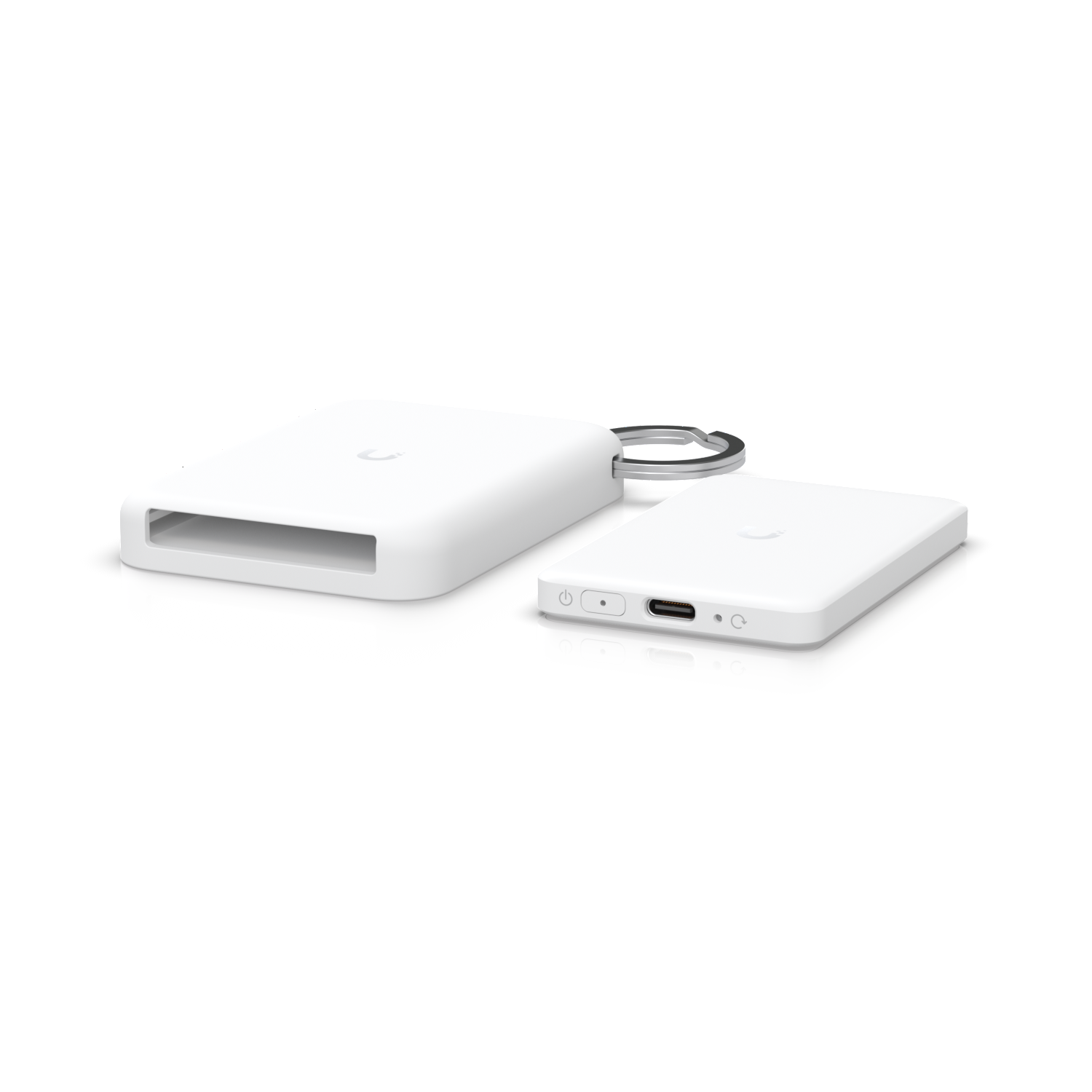

The WiFiman Wizard is a portable spectrum analyzer designed to work with the WiFiman mobile app on iOS and Android. It scans both the 2.4 GHz and 5 GHz unlicensed bands, giving users a clear view of wireless activity and interference in their environment. With up to 240 minutes of continuous scanning battery life, BLE pairing with smartphones, and a USB-C charging port, it is built for convenient on the go use.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Portable spectrum analyzer built for the WiFiman mobile app
- Scans both 2.4 GHz and 5 GHz unlicensed bands
- 240 minutes of continuous scanning battery life
- BLE pairing with smartphones

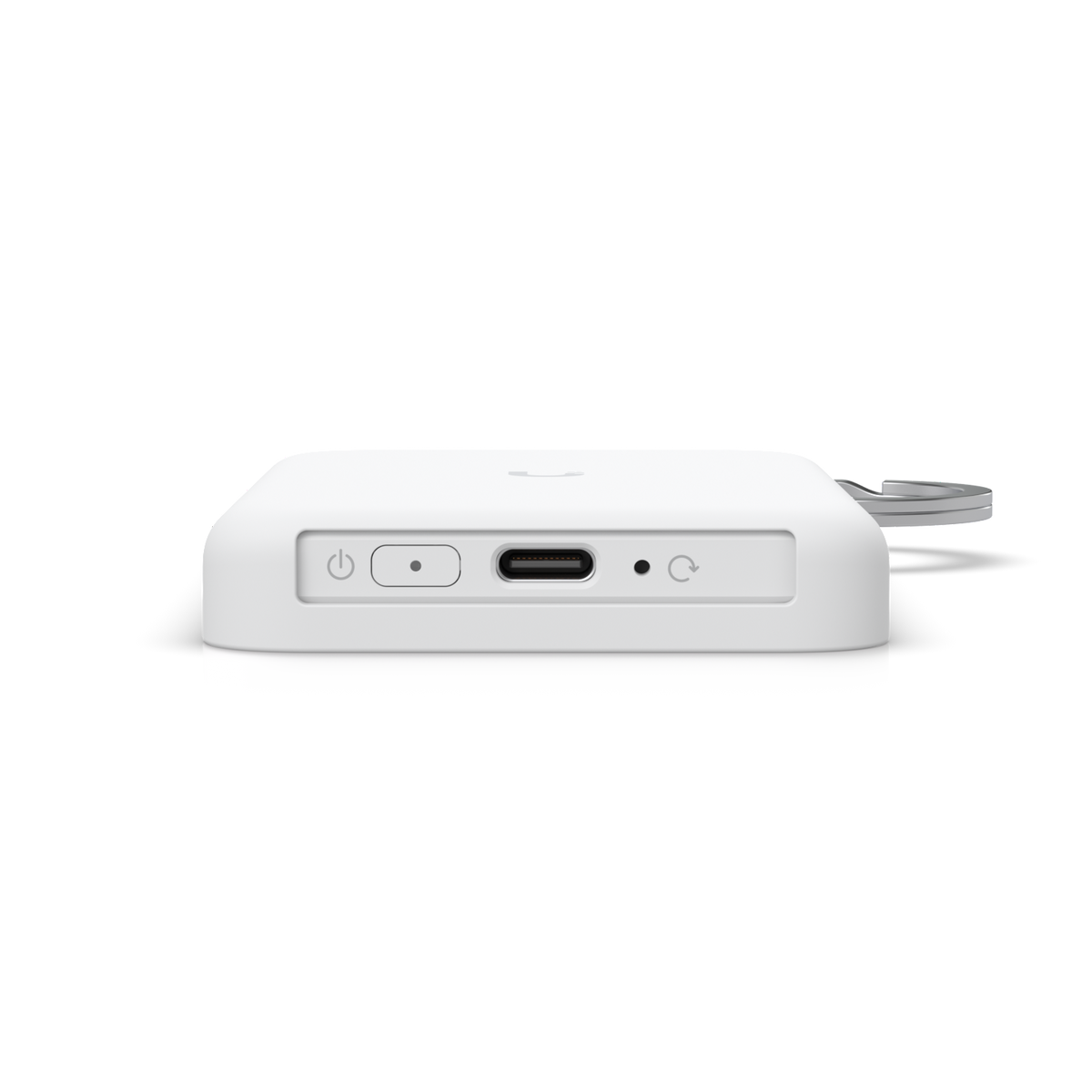

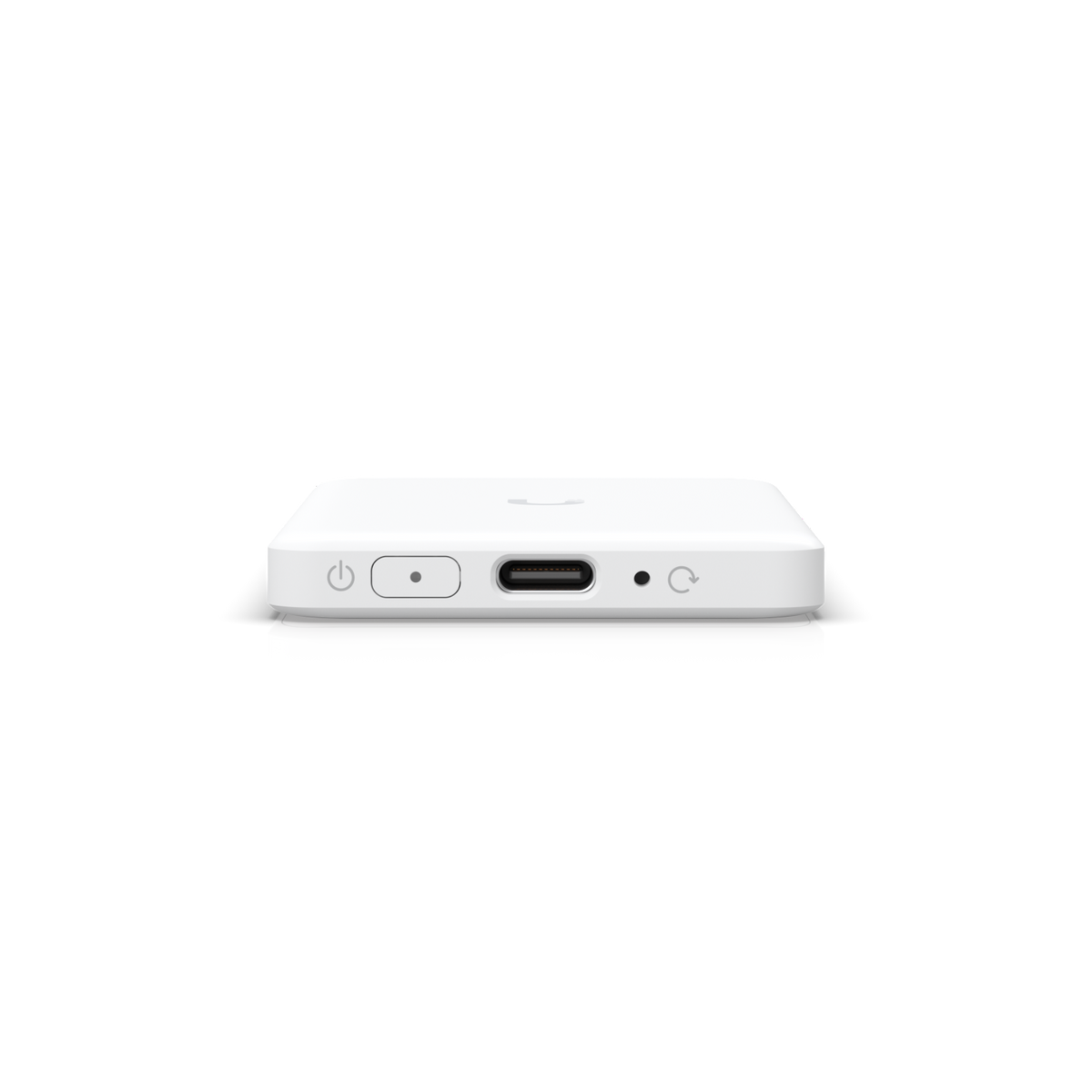

- USB-C charging port

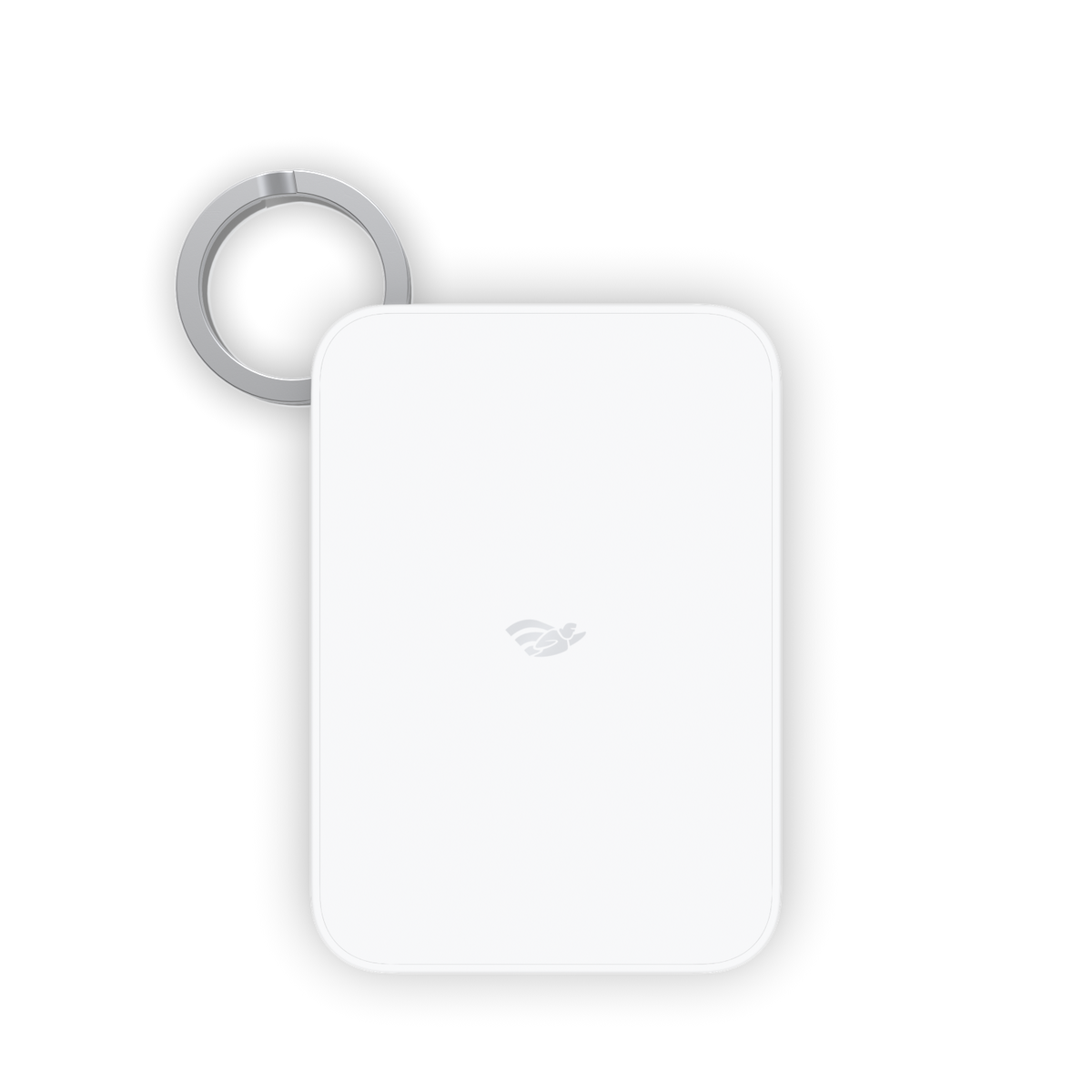

- iPhone Magsafe attachable support with a compatible Magsafe case
- Compatible with WiFiman mobile app version 0.18.0 and later for iOS
- Compatible with WiFiman mobile app version 1.15.0 and later for Android
Specifications:
- Dimensions: 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3 in)
- Weight: 32 g (1.1 oz)
- Enclosure Material: Polycarbonate
- Weatherproofing: IP55
- Power Method: Li-ion battery
- Power Supply: Rechargeable Li-ion battery, 3.7V DC, 300mAh
- Supported Voltage Range: USB-C, 5V DC/1A
- Max Power Consumption: 32.4mW
- SSID Scan Frequency Range: 2.4 to 2.5 GHz, 5.15 to 5.85 GHz
- Amplitude Range: -96 dBm to 0 dBm
- Amplitude Resolution: 1 dBm
- LEDs: White, Blue, Red
- Buttons: One power button, one factory reset button
- Ambient Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Ambient Operating Humidity: 10 to 90 percent noncondensing
- Certifications: CE, FCC, IC, Anatel
- Mobile App Requirement, iOS: UniFi WiFiman iOS version 0.18.0 and later
- Mobile App Requirement, Android: UniFi WiFiman Android version 1.15.0 and later
Package Contents:
- WiFiman Wizard Spectrum Analyzer
- USB-C Charging Cable
