Description:

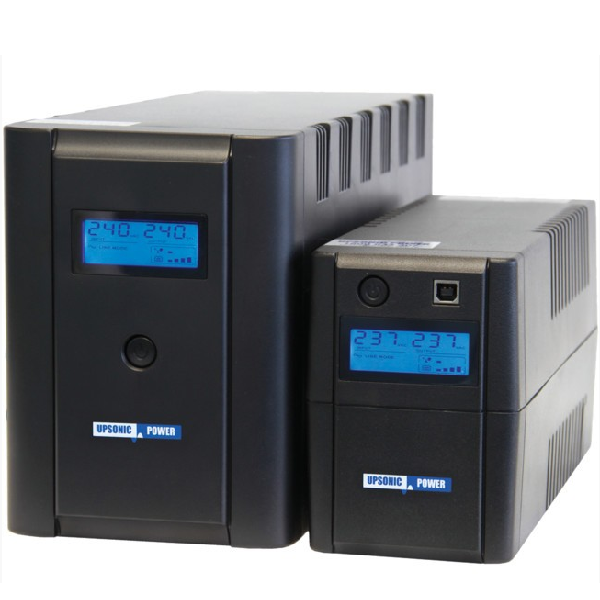

The Upsonic Power DSV Series 1000VA is a high quality, compact, and affordable line interactive UPS suited to workstations, small businesses, POS equipment, roller shutters, and PCs. It features a state of the art automatic voltage regulator (AVR - Buck and Boost), enabling the UPS to maintain a secure and regulated output voltage without drawing on batteries for mains voltages between 207VAC and 265VAC. A voltage surge/spike suppressor and noise filter deliver continuous power protection under all operating conditions, and in the event of a total power failure the unit switches over to battery backup from its maintenance free internal batteries in under 6 mSec. When paired with intelligent shutdown software, it can provide detailed information on input power quality, record power events, and carry out a fully automatic system save and close-down during a power failure. An integral RJ11/RJ45 network connection ACA approved telephone line filter protects sensitive phone, fax, and modem equipment from power disturbances entering through the phone lines.
Features:
- Microprocessor control guarantees high reliability and efficient operation
- Equipped with Buck and Boost AVR to stabilise input voltage and extend battery life
- Built-in DC start function enables UPS to be started without AC power supplied
- USB communication port with free software available via internet download
- Auto restart on AC recovery
- Compact size and light weight saves space and money
- Provides modem and phone line surge protection
- Provides overload protection
- Graphic LCD display that is easy to understand
- Green function under 100 Watt
Specifications:
- Brand: Upsonic Power
- Series: DSV
- UPS topology: Line interactive
- Capacity: 1000VA / 600W
- Input voltage: 230VAC
- Input voltage range: 162 - 290VAC
- Input frequency: 50 - 60Hz (auto sensing)
- Output power factor: 0.6
- Output voltage (AC mode): 230VAC ±15%
- Voltage regulation (battery mode): ±10%
- Output frequency: 50/60Hz ±10%
- Frequency regulation (battery mode): ±1Hz
- Output waveform: Modified sine wave
- UPS outlets: 2 (Australian 3 pin - 10A)
- Efficiency (line mode): 95%
- Efficiency (AVR mode): 88%
- Efficiency (battery mode): 60%
- Battery type: 12V/7AH x 2pcs
- Recharge time: 6 hours to 90% after complete discharge
- Typical transfer time: <8ms
- Indicator: LCD indicator with blue back light, turns on when the UPS is powered up, displays in/out voltage (AC), load level, battery capacity, and operational mode
- Audible alarm: Yes
- Protection: Full protection including discharge, overcharge, and overload protection
- Interface: USB, RJ11 - Phone/Modem, RJ45
- Software: Winpower via internet download, free for BSD/Linux/Mac/Windows 95-2008/Vista/Unix
- Dimensions (DxWxH): 364 x 139 x 195mm
- Nett weight: 5.3 kg
- Operating environment: 0 ~ 40°C, 0 ~ 90% relative humidity (non-condensing)
- Noise level (AC mode): Less than 40dB
